Unattended payments. Fully connected.
Paymentsโ€บSurfAlone

Unattended payments. Fully connected.

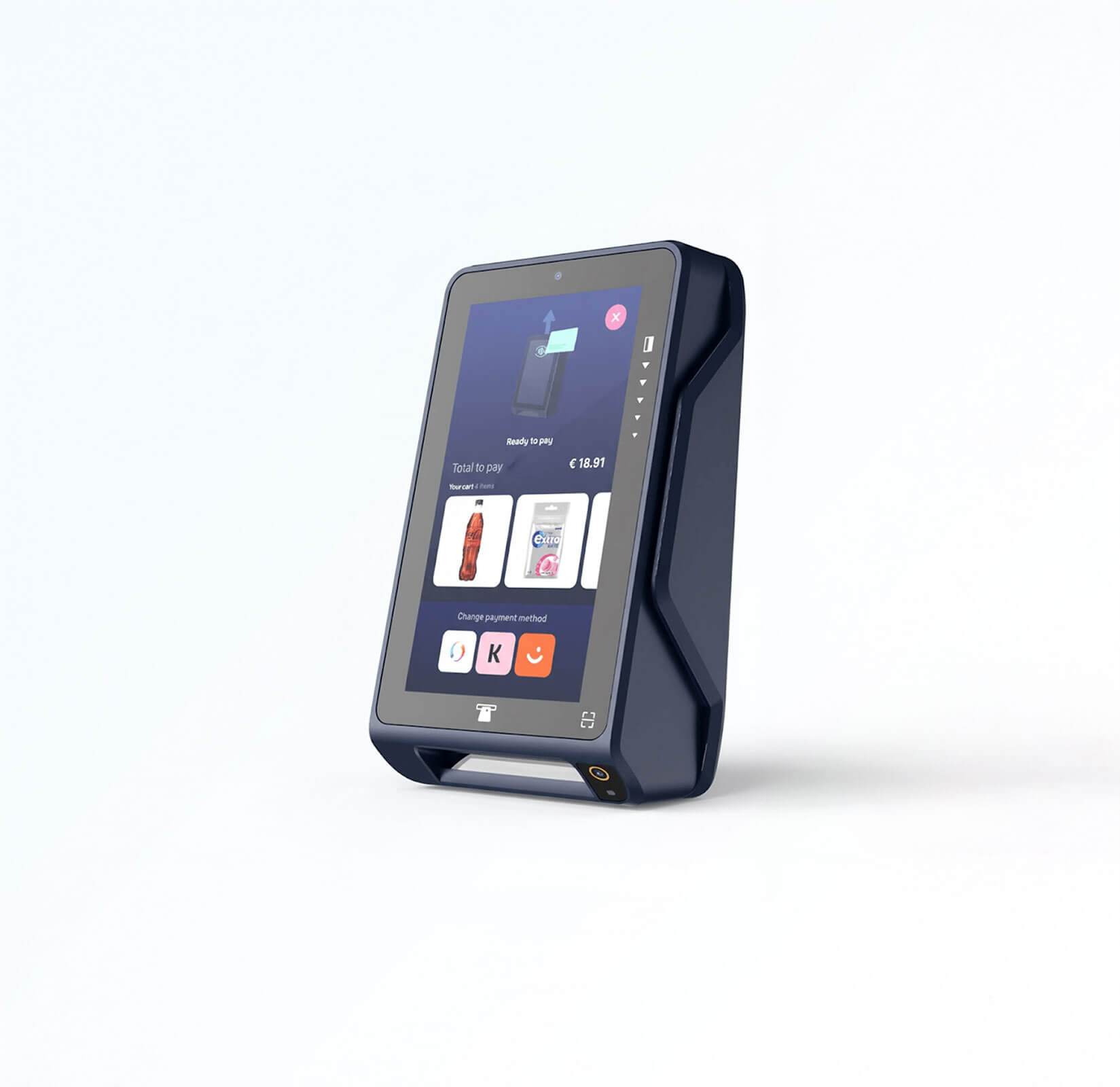

SurfAlone enables unattended payments for vending, parking, and transport with zero compromise on performance or control. It supports all major interfaces, and connects directly to the Surfboard Platform for a frictionless, autonomous checkout experience.

Made for movement

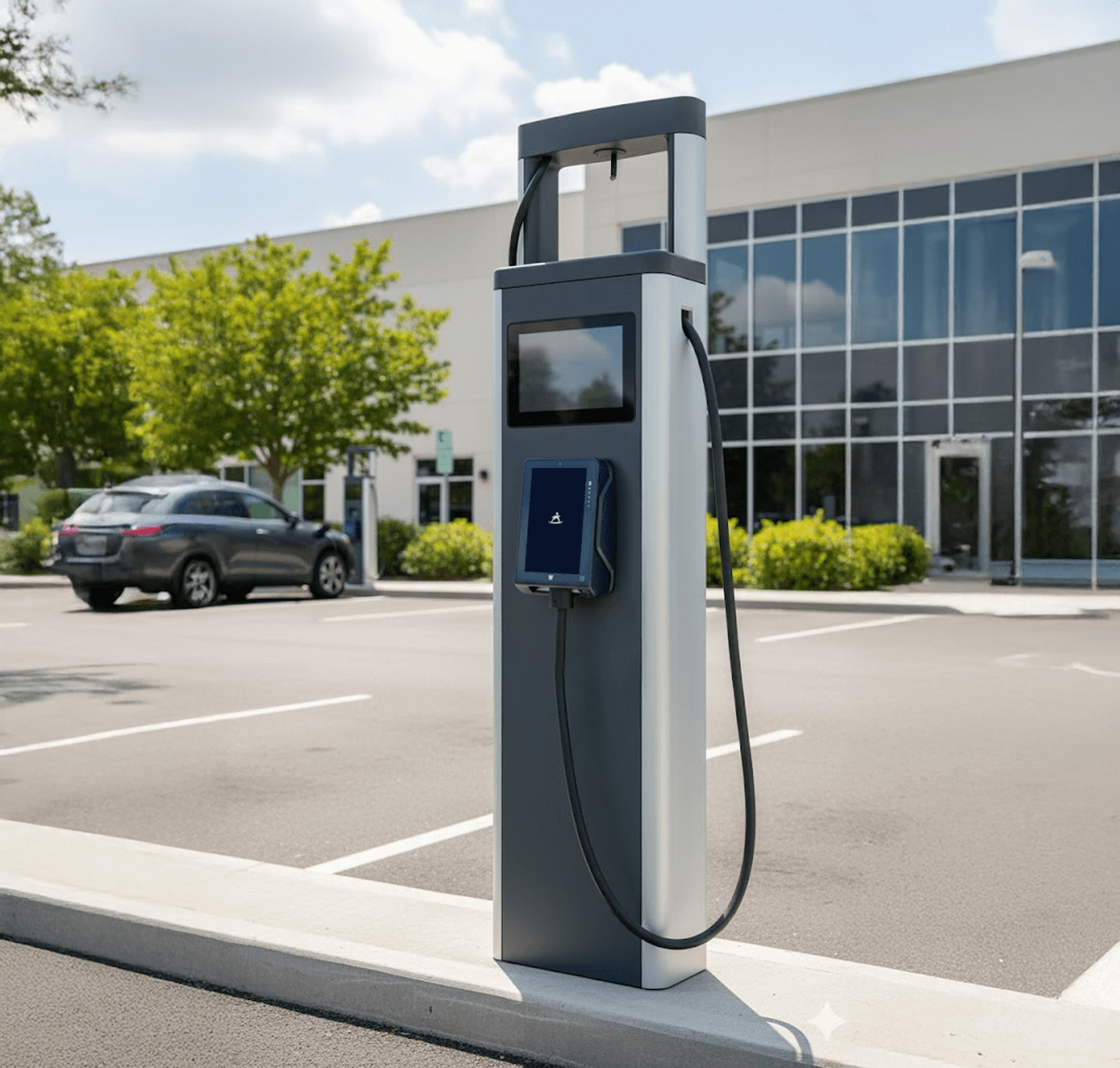

  • ๐Ÿš— EV charging & parking systems

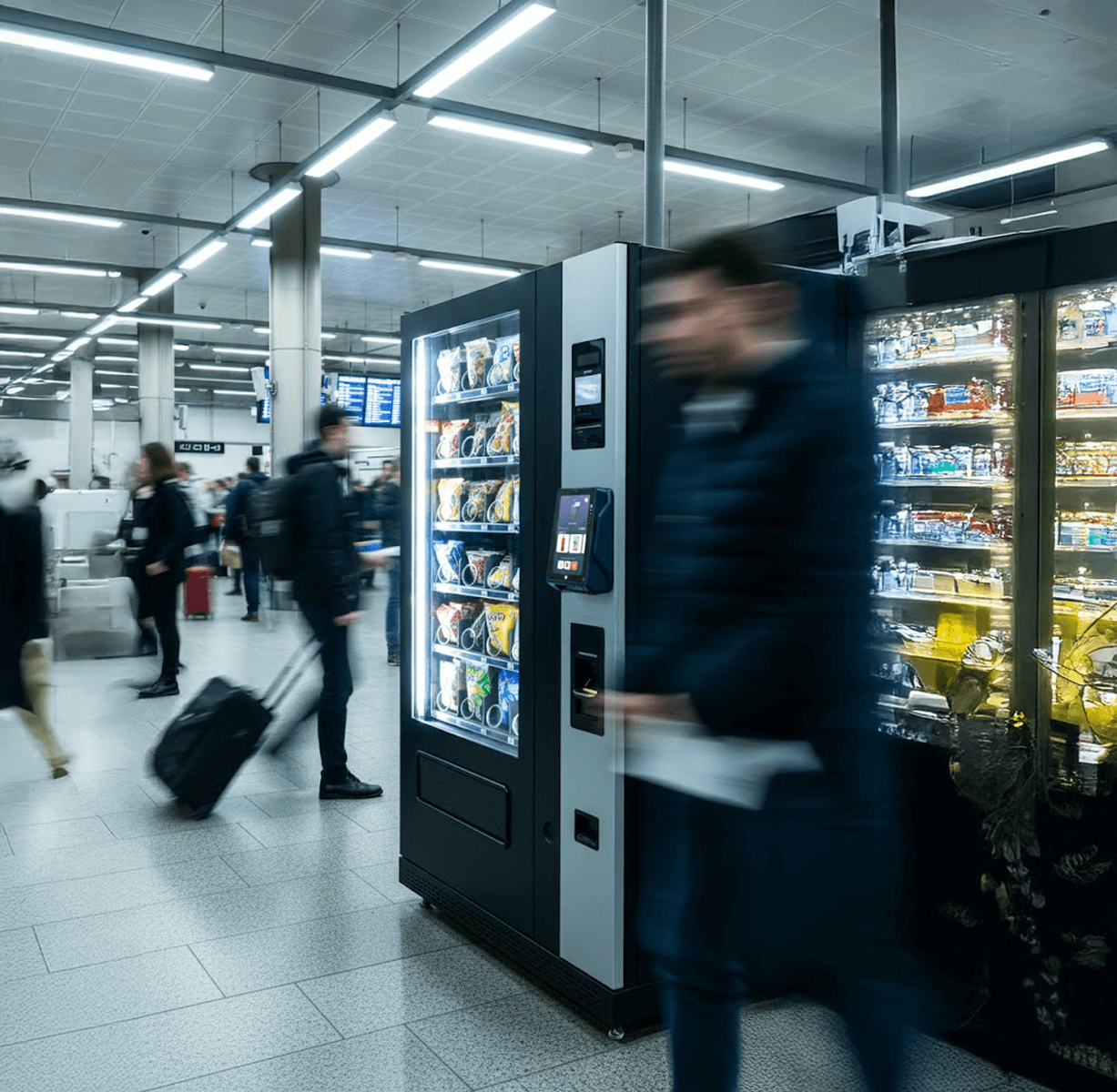

  • ๐Ÿฅค Vending & smart retail

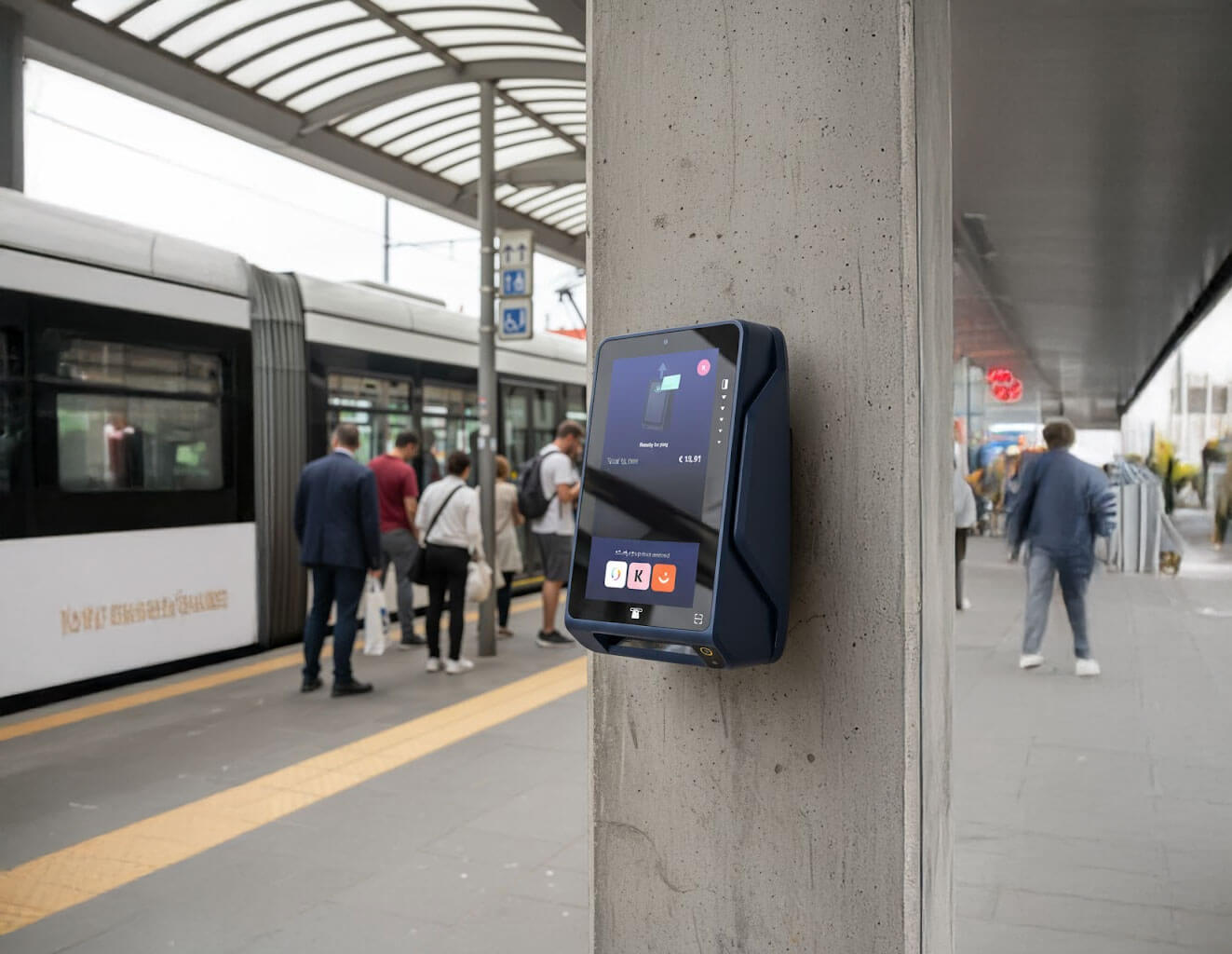

  • ๐ŸŽŸ Ticketing & transport kiosks
  • ๐Ÿช Unattended self-service stations

Built for self-service

The SurfAlone is built to thrive in the toughest conditions. With full MDB + RS232 connectivity, it's the go-to terminal for vending, EV charging, transport ticketing, and kiosk environments that demand reliability, speed, and security.

No middleware. No custom drivers. Just plug in, connect to the Surfboard API, and go live - with the same functionality, loyalty logic, and payout features as every other Surfboard device.

5" touchscreen with anti-fingerprint and anti-glareSupports operations with glovesMDB, RS232, and LAN for vending and kiosk integration

Tough outside, smart inside

Engineered for unattended environments, SurfAlone combines durability with intelligence. Its IK10 impact resistance, IP65 protection, and -20?C to +70?C operating range ensure total reliability - indoors or outdoors, rain or shine.

Adaptive brightness and built-in sensors automatically detect light and presence, optimizing visibility and energy efficiency - keeping the screen readable day or night.

Smarter customer interactions

The 5-inch multi-touch display delivers a smooth, modern user experience with anti-glare and anti-fingerprint coating.

Indicator lights guide users clearly through each payment step, ensuring frictionless transactions - even in high-traffic, unattended setups.

Equipped with dual cameras, SurfAlone supports both 1D/2D code scanning and QR-based payments - bringing the same rich payment experience customers expect from attended terminals.

Supported Payment Methods

Here are the payment methods we support across our platform:

  • Mastercard
  • Visa
  • American Express
  • Discover
  • Apple Pay
  • Google Pay
  • Swish
  • Klarna
  • Svea
  • Vipps
  • Dankort
  • BankAxept
  • Pay by Bank

From registration to payments in the blink of an eye

It's very straightforward to get started. Register your developer account, get access to your keys, order terminals for your merchants, and register them upon arrival. Then you are up and ready to go.

                            //Register Terminal
POST /merchants/:merchantId/stores/:storeId/devices

curl -X POST \
  -H "Content-Type: application/json" \
  -H "API-KEY: YOUR_API_KEY" \
  -H "API-SECRET: YOUR_API_SECRET" \
  -H "MERCHANT-ID: YOUR_MERCHANT_ID" \
  -d "{
  "registrationIdentifier": "250901",
  "terminalName": "Kiosk One"
}"


Specifications

Processor
AP: Cortex Quad-core A53, 2.0GHz | SP: Cortex-M4F security core
Memory
2GB RAM, 16GB FLASH | Micro SD card slot up to 256GB
Display
5-inch, resolution of 720*1280, capacitive multi-touch screen, anti-fingerprint (AF), anti-glare (AG), support operation with glove
Operating System
Android 12 SurfOS
Wired Communication
Ethernet 10/100 Base - T
Wireless Communication
4G / 3G / 2G, WIFI (802.11 a/b/g/n/ac) 2.4G&5G, Bluetooth 2.1/5.0
Positioning
GPS, GLONASS,BEIDOU, GALILEO, QZSS
Card Reader
Magnetic Card Reader, Smart Card Reader, Contactless Card Reader
Camera
2MP QR camera, support 1D/2D code payment | 2MP front camera, support 1D/2D code payment
Audio
1 x Speaker
Keypad
Secure virtual keypad for PIN entry, 2 x buttons on the back
Water & Dust Proof
IK10, IP65
Peripheral Ports
1 x USB Type-A (Host), 1 x USB Type-C (Slave) (used for downloading only), 2 x RS232 (RJ45), 1 x LAN (RJ45), 1 x MDB Master & Executive, 1 x MDB Slave, 1 x 3.5mm audio jack, 1 x SMA (4G), 1 x HDMI (Optional)
Card Slots
2 x SAM, 2 x SIM
Sensor
Light sensor, Microwave radar sensor
Power Supply
12V~48V DC,MDB/RS232 | 24V AC via Executive
Dimensions
151.5mm (L) * 94mm (W) * 51.4mm (H)
Weight
520.7g
Environment
Operating temperature: -20โ„ƒ๏ฝž+70โ„ƒ (-4โ„‰~158โ„‰) | Storage temperature: -30โ„ƒ๏ฝž+70โ„ƒ (-22โ„‰~158โ„‰) | Relative humidity: 5%๏ฝž93% (Non-condensing)
Certifications
EMV L1, EMV CL1, TQM, PCI 6.X, EMV L2, D-PAS, AMEX, QuickPass, PayPass, PayWave, RoHS, CE, ATEX
