SurfTouch - The smart Android terminal

Accept payments |

Our all-in-one handheld smart terminal device with or without a scanner for the countertop and the floor. Contactless and chip, with the possibility to implement multiple payment methods.

The new Android terminal

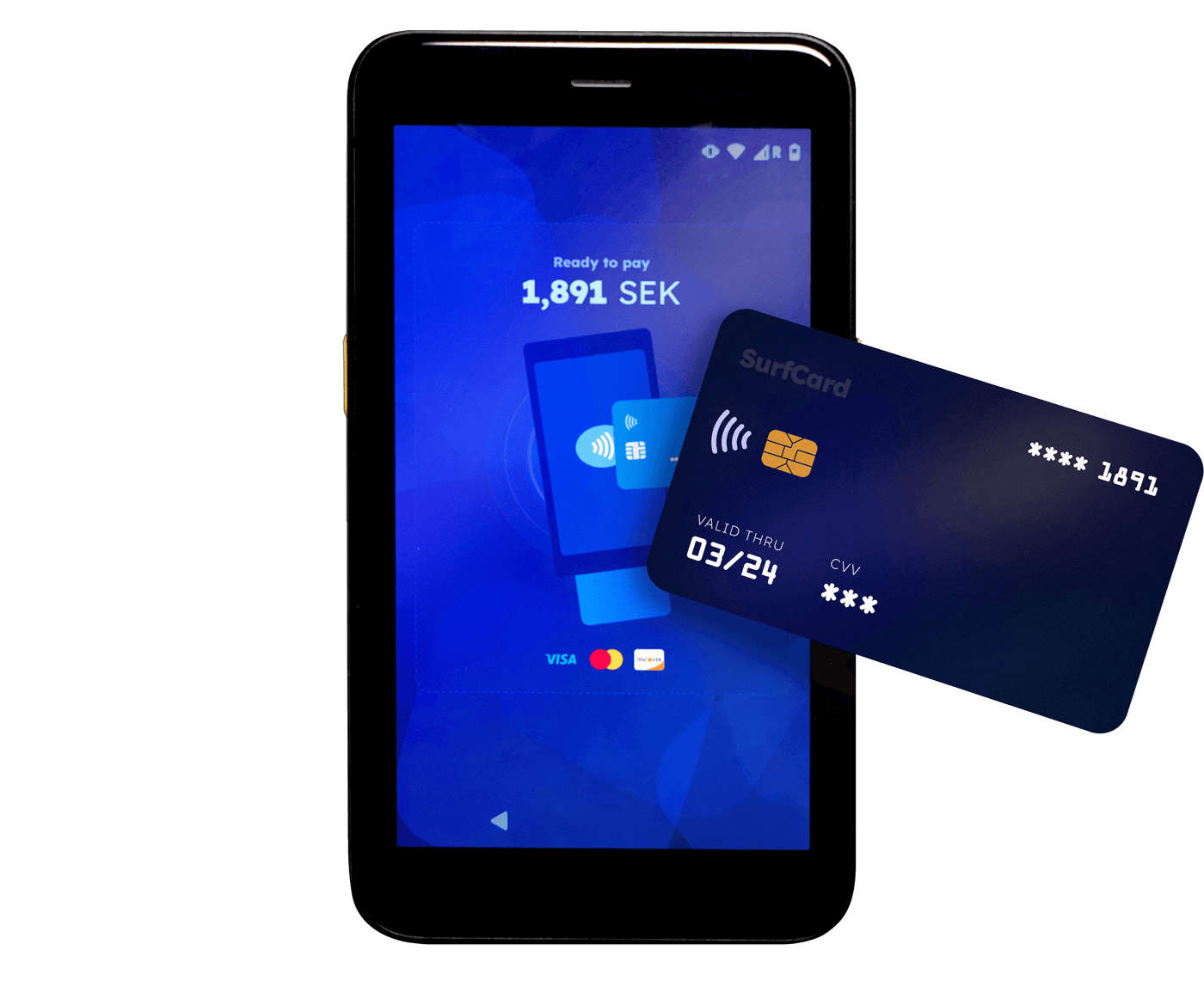

The SurfTouch is an Android-based touchscreen device for both contactless and chip transactions. With a contactless reader on the front screen, the experience of tapping the card is as good as it gets.

Mounting it on the countertop or carrying it around in the shop is up to your merchant. We provide all the needed accessories for your merchants to get their dream setup.

The SurfTouch is easy to implement for you, simply tap into our developer portal and get started with our API. All of our terminals build on the same API, so if you implement one, you basically implement all of them.

Gives a great flexibility

The built-in scanner makes it possible for you to integrate into your POS, and with a 5-inch high-resolution touchscreen at your service, you can even use it as a customer-facing screen, mounted on the countertop.

Implement multiple payment methods, get our receipt host going for digital receipts, and rely on our delivery service to get your merchant their devices within 48 hours.

One of many use cases

Accept payments everywhere

The SurfTouch handheld card terminal for companies on the move

  • Meet the customers on the floor, or take the terminal with you when you sell at different locations
  • Embed the SDK or use our CheckoutX app
  • Card payments and other payment methods
  • Digital receipts after a transaction, and the possibility to purchase a charger stand with a built-in printer
  • Reliable terminal with contactless and chip
  • Built-in scanner

Supported Payment Methods

Here are the payment methods we support across our platform:

  • Visa
  • Mastercard
  • American Express
  • Discover
  • Apple Pay
  • Google Pay
  • Samsung Pay
  • Swish
  • Klarna

From registration to payments in the blink of an eye

It's very straightforward to get started. Register your developer account, get access to your keys, order terminals for your merchants, and register them upon arrival. Then you are up and ready to go.


//Register Terminal
import axios from "axios"
const data = JSON.stringify({
    "registrationId": "250901",
    "storeId": "st_GZVDbwmS86_G9pwc669U2"
})
const response = await axios({
    url: "YOUR_API_URL/terminals",
    port: 3005,
    data,
    method: "POST",
    headers: {
        "Content-Type": "application/json",
        "API-KEY": "YOUR_API_KEY",
        "API-SECRET": "YOUR_API_SECRET"
    }
})



Available accessories

Accessories

Charger stand with printer

Including printer and cable

Charger stand

Including cable

Rugged case

For tough environments

Mounting

Multigrip Handle

Holder for the terminal

DuraTilt Counter

Metallic stand for handle

Mounting Pole

Plastic stand for handle

Specifications

Card payments
Contact chip and contactless with PIN. Contactless reader on the screen
CPU
Quad Core ARM Cortex-A53 - 1.8 GHz, Secure ARM Cortex M4
Memory
1 GB RAM, 8 GB Flash (optional), 2 GB RAM, 16 GB Flash (optional)
Operating System
Android 10 SurfOS
Main camera
5 megapixels, fixed focus, 70 lm flash light
Buttons
On/Off button, 2 scan buttons
Display
5-inch mutual capacitance touch 720 x 1280 px
Sensors
Accelerometer Proximity sensor, Light sensor
Smart card reader
Friction type
Contactless reader
NFC-A, ISO 14443 Type A, NFC-B, ISO 14443 Type B, NFC-F, Felica NFC-V, ISO 15693
Contactless payments
VISA payWave, MasterCard PayPass, American Express, DPAS (Discover)
Barcode reader
2D Zebra SE4710 - 1280 x 800 CMOS
Connectors
2 x nano SIM card slots, SAM card slot, Micro SD card slot (max 32 GB), RS-232 contact pins, USB Type-C port 3.5 mm, TRRS port
Wireless
IEEE 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz
Cellular
2G/3G/4G
Battery
Rechargeable Li-Ion Battery, 4.35 V, 2500 mAh, Coin Cell, 3 V, 120 mAh
Reliability
500,000 chip card cycles
Certificates
CE, FCC, ROHS, CB, BIS, UN38.3, PCI PTS 5.x SRED, EMV Level 1, EMV Level 2, EMV Level 1 Contactless
Dimensions W x D x H
144 x 77 x 16 mm
Weight
208 g
Drop tested
1.2 m, faces and edges
Operational temperature
-10 °C to 50 °C
