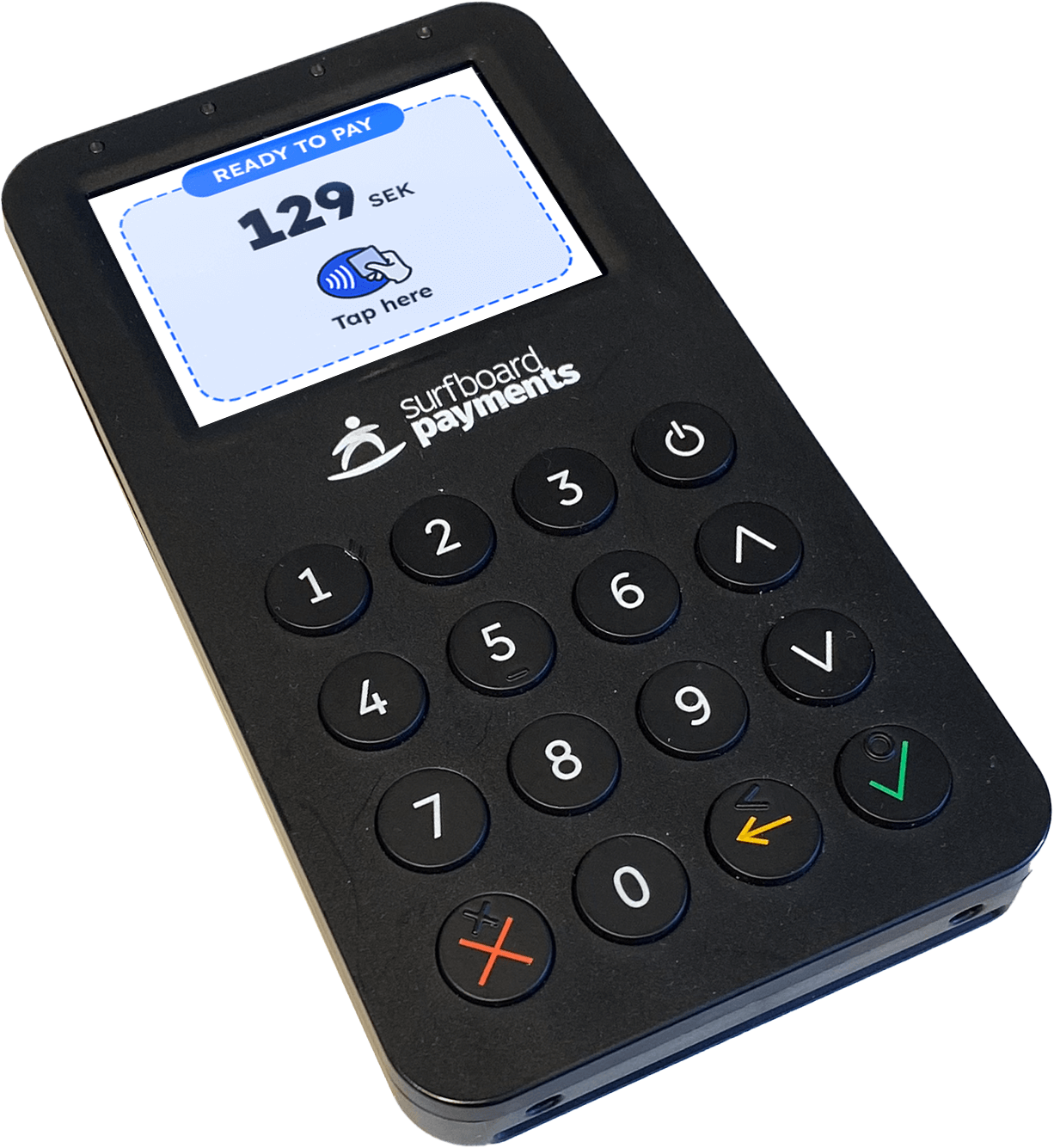

SurfPad - The stand-alone for card payments

A terminal for |

Like a traditional card terminal but built on our API. All mobile network and WiFi. Send payments from your POS with one request.

Add to your current setup

Imagine having the need for a traditional payment terminal, with a physical PIN pad and a fully dedicated card experience. But without the traditional way of implementing it.

We give you the SurfPad instead. Fully built on our APIs, which lets you trigger card payments from your software to the terminal. Incredible speed, pre-tap, both chip and contactless, and finally no Bluetooth. Full connectivity through mobile network with included SIM card and of course WiFi.

Everything in the settings, from the tiniest little detail like the color of the status bar, is editable through the API or Partner portal. Your choice.

Card payments triggered by API

Easy replacement for any independent software vendor in need of a new payment solution.

  • Stand-alone card terminal: Easily send over the transaction from your software to our payment terminal for card payments
  • Connectivity: Always connected with WiFi and SIM card for data (included)
  • Cloud-based: Everything runs through our Order and Payments API and returns the transaction data to your software
  • OTA: Over-the-air updates for firmware
  • Fast: High-speed transaction

Build your own

We do not use revolutionary often. But this is. You can customize the card terminals you provide to your merchants by selecting colors, logotypes and even adding some extra flames to it. Or waves. We'd prefer waves.

  • Customize: Select among our pre-designed colors or add your own
  • Your brand: Add your own logotype to the card terminal and keep the in-store experience within the brand
  • Mulitple outputs: Five stores in orange and another five in purple? Nemas problemas, we will solve that one too

Supported Payment Methods

Here are the payment methods we support across our platform:

  • Visa
  • Mastercard
  • American Express
  • Discover
  • Apple Pay
  • Google Pay
  • Samsung Pay
  • Swish
  • Klarna

No way José!

Yes way, José. We promise you. Everything is API first here. Even the OTA updates for the terminals. New card scheme to be added to a single terminal, or all of them? Nemas problemas, just push it with a single call.


//Add new card scheme support
import axios from "axios"
const data = JSON.stringify(
  {
    "amexMID": "abcdefg"
  })
const response = await axios({
  url: "YOUR_API_URL/merchants/:merchantId/payment-methods/amex",
  port: 3005,
  data,
  method: "POST",
  headers: {
    "Content-Type": "application/json",
    "API-KEY": "YOUR_API_KEY",
    "API-SECRET": "YOUR_API_SECRET"
  }
})



Available accessories

Accessories

Charger stand

Including cable

CheckoutPro

Pair with the customer-facing screen app

Privacy shield

Keep the keypad protected

Mounting

MultiGrip handle

Holder for the terminal

DuraTilt counter

Metallic stand for handle

Mounting Pole

Plastic stand for handle

Universal Tablet frame

Mounting for CheckoutPro tablet

Specifications

Card payments
Contact chip and contactless with PIN
CPU
Secure ARM Cortex M3
Buttons
On/Off button, 10 numeric buttons 5 function buttons
Display
320 x 240 px touchscreen display
Smart card reader
Landing type
Contactless reader
NFC-A, ISO 14443 Type A, NFC-B, ISO 14443 Type B, NFC-F, Felica, NFC-V, ISO 15693
Contactless payments
VISA payWave, MasterCard PayPass, American Express, DPAS (Discover), China UnionPay, J/Speedy (JCB), Common.SECC
Connectors
RS-232 contact pins, USB Type-C port, SAM card slot (optional), SIM card slot (optional)
Wireless
Wi-Fi IEEE 802.11 b/g/n
Cellular
2G/3G/4G
Battery
Rechargeable Li-Ion Battery 3.7 V, 1180 mAh
Certificates
CE, FCC, PCI PTS 4.x, EMV Level 1, EMV Level 2, EMV Level 1 Contactless, TQM
Dimensions W x D x H
71 x 133 x 19 mm
Weight
180 g
Drop tested
1.2 m, faces and edges
Operational temperature
-10 °C to 40 °C
Power Supply
DC 5 V through USB DC 5 V through contact pins
